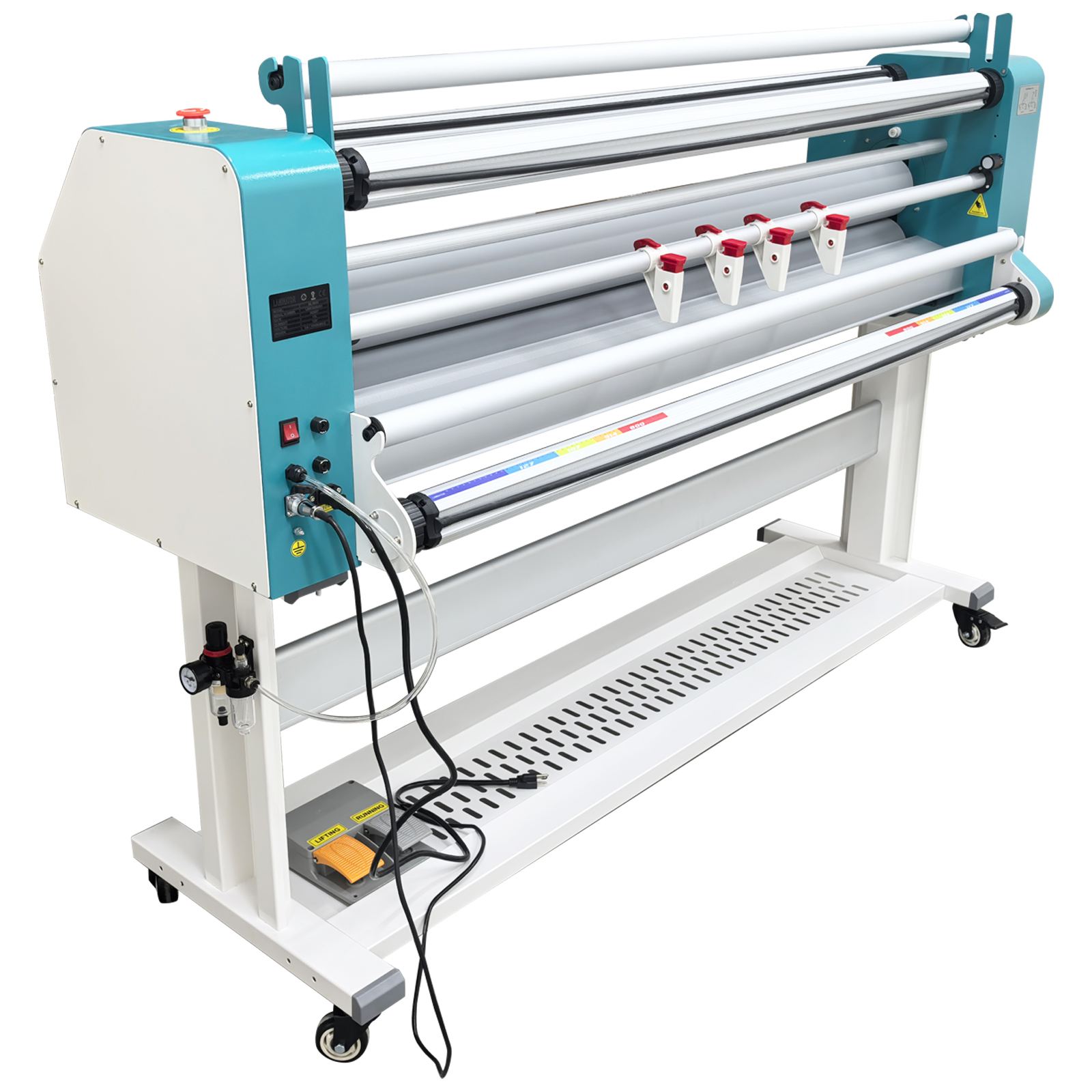

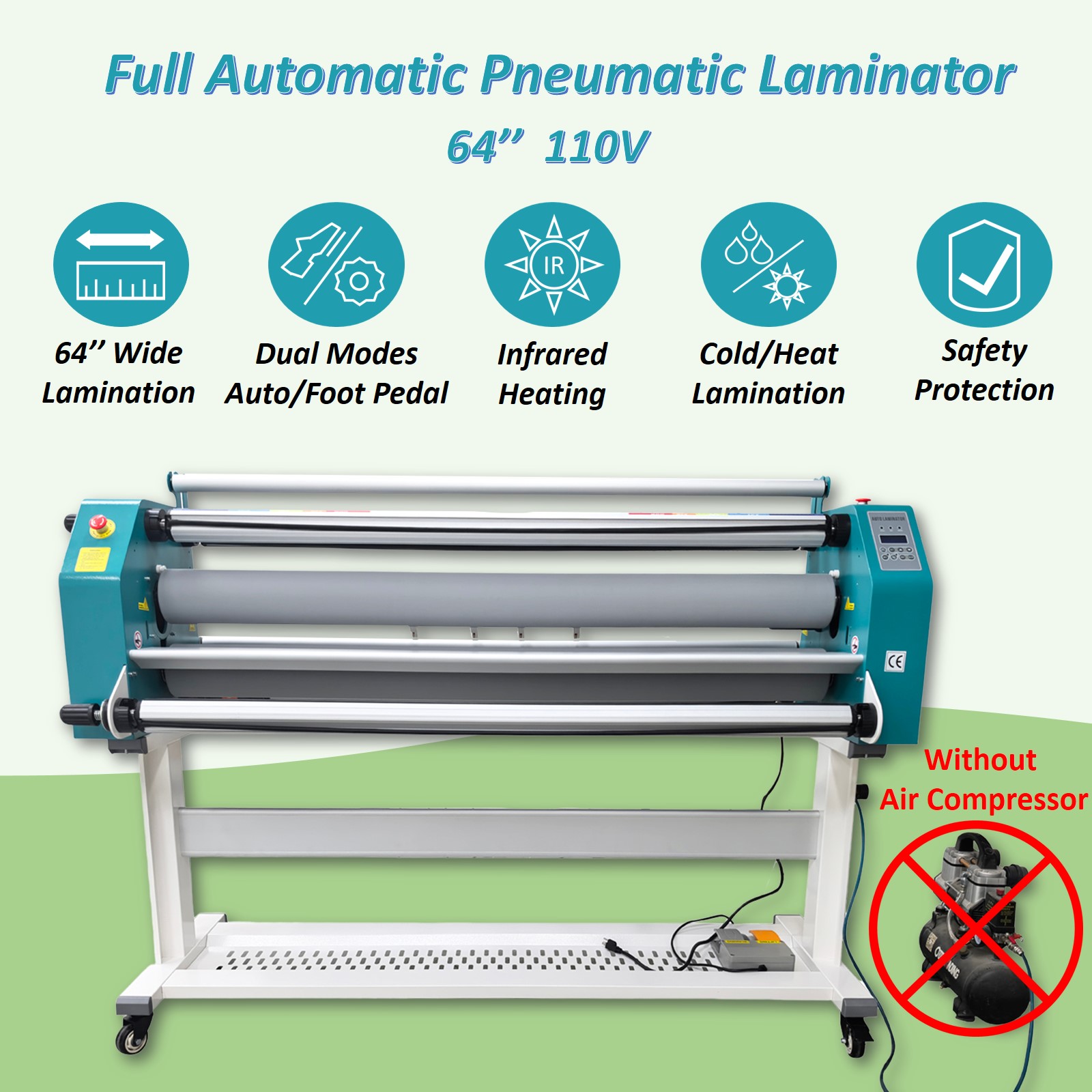

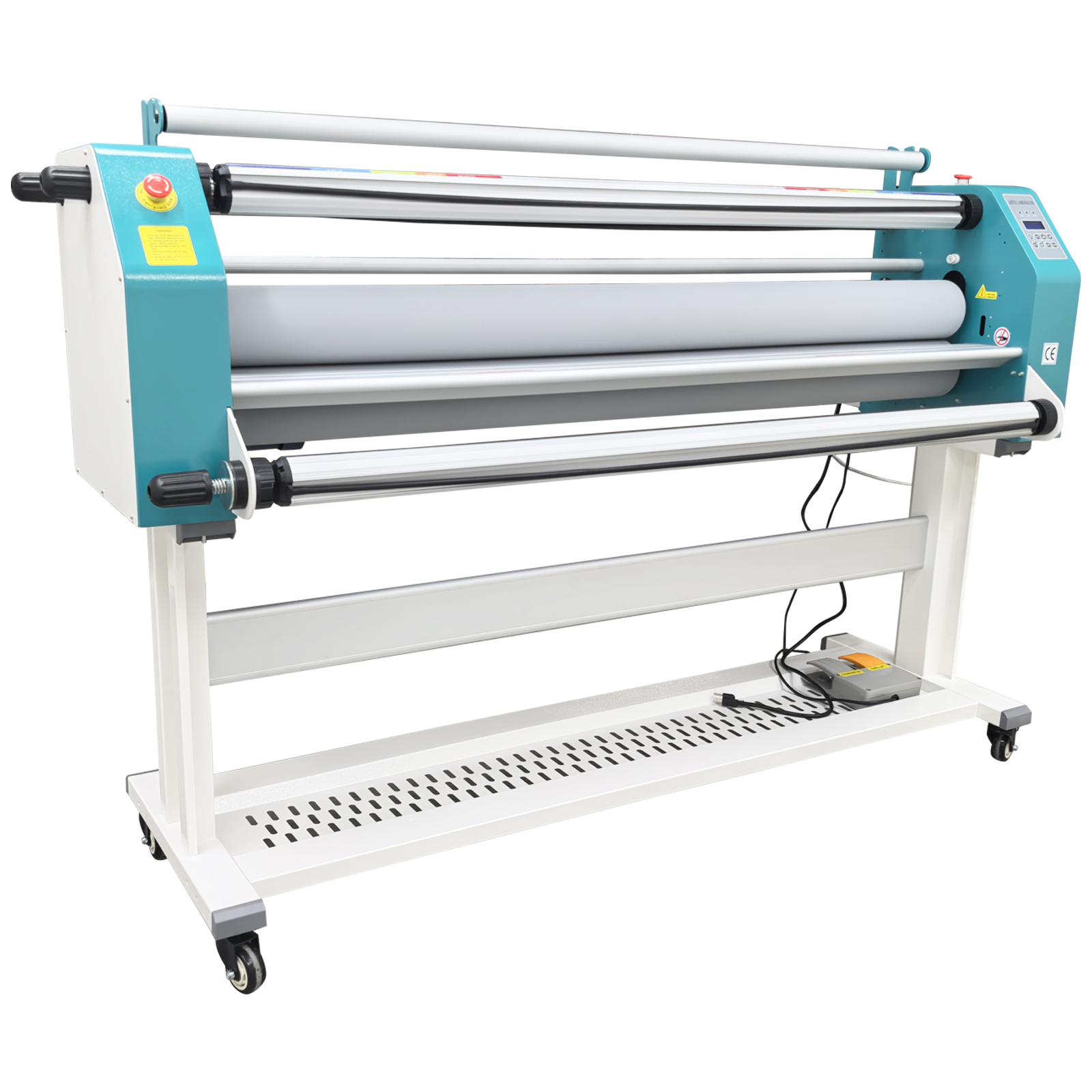

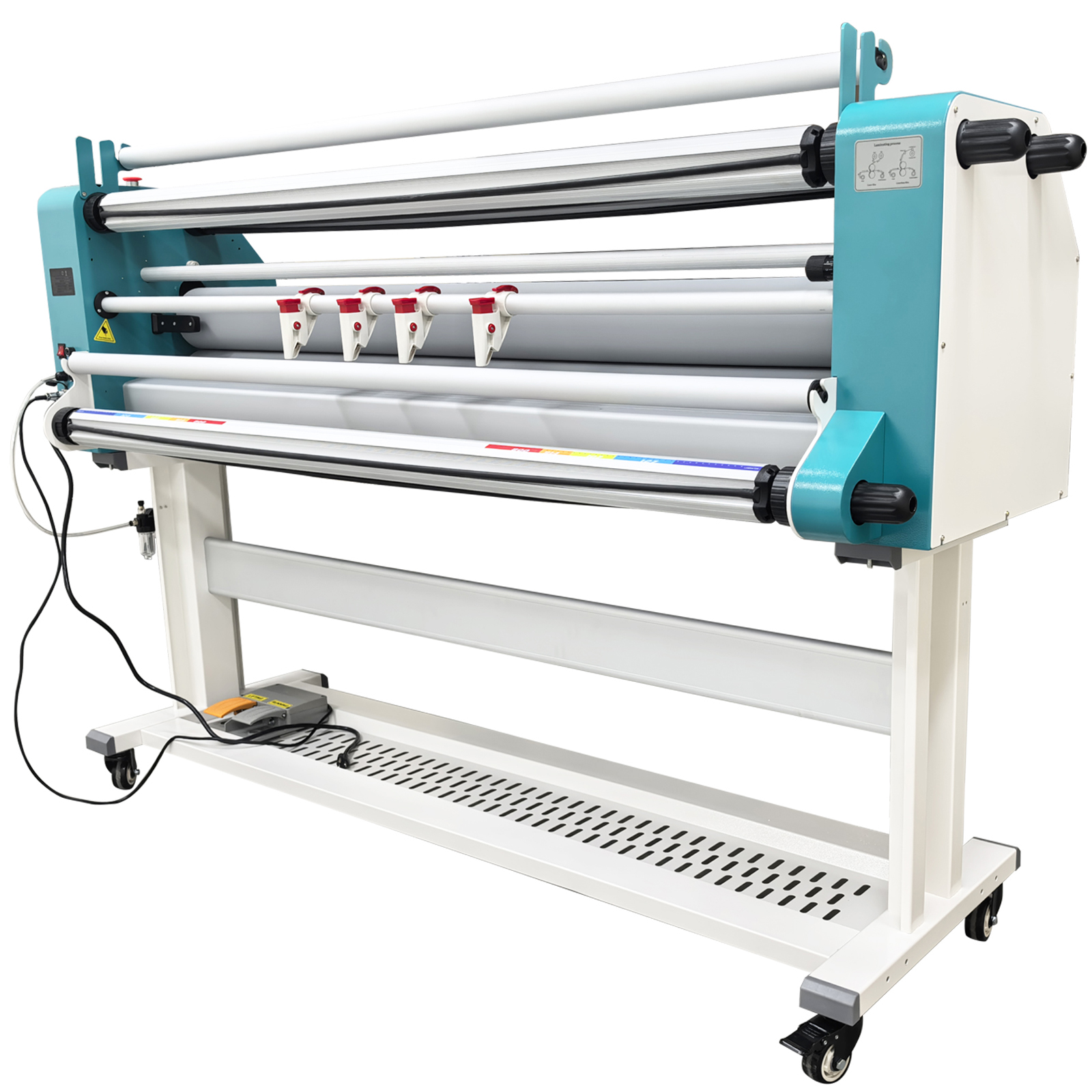

64" Full Automatic Pneumatic Laminating Machine Single-sided Roll Laminator (Excluding Air Compressor)

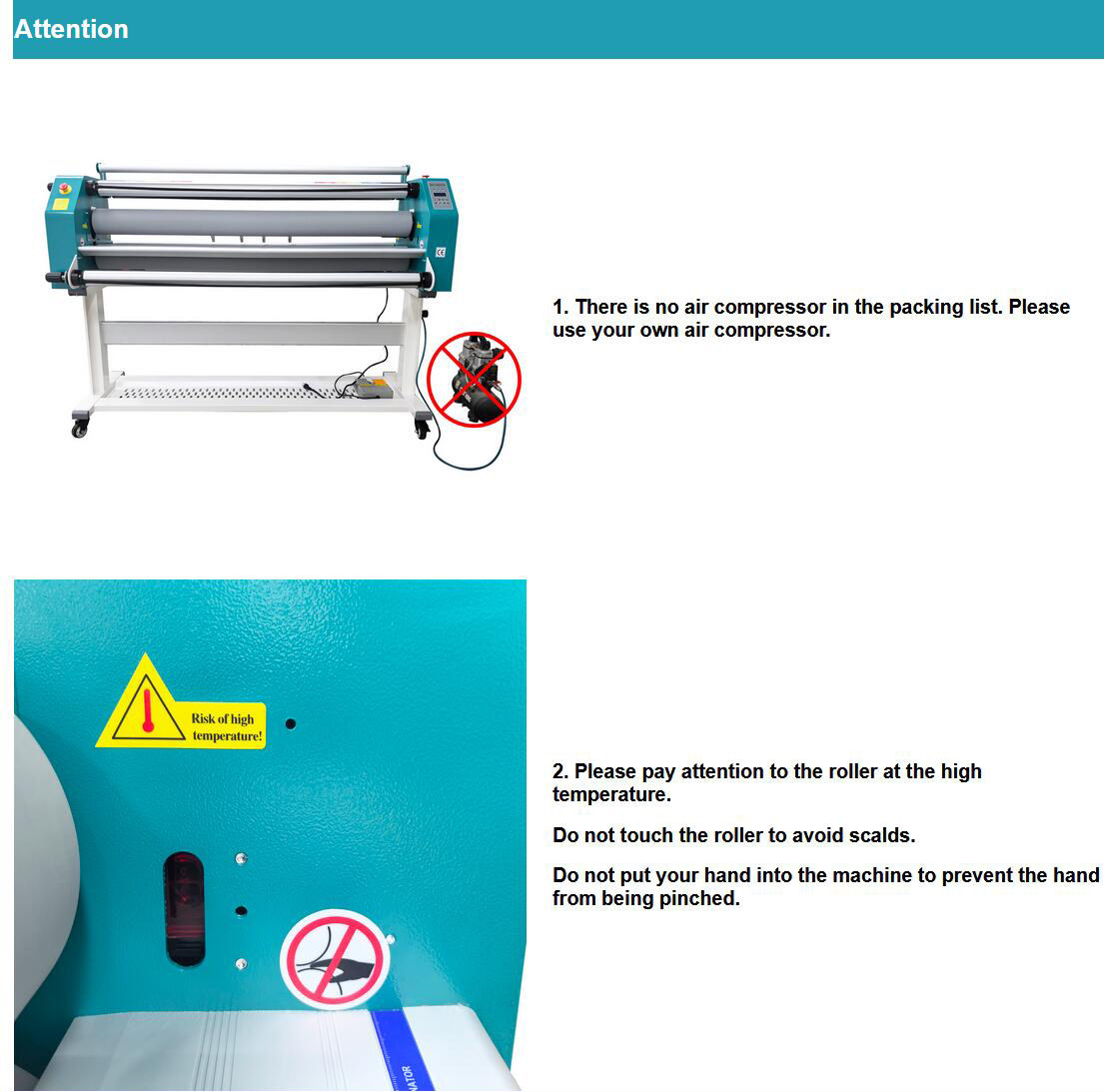

Attention:<br> There is no air compressor in the packing list. Please use your own air compressor.<br> <br> Product Overview<br> The 64" full automatic pneumatic laminating machine is a professional laminator for covering various drawings with different films with or without back paper in a cold press or heating mode, and the drawings processed through the laminating operation are colorful, waterproof and colorfast and have an excellent display effect. The laminator has two control modes of automation and foot pedal to achieve the cold and thermal laminating operation. It also has the independent cutters to cut the laminated drawings as required. It is an excellent laminating machine for the enterprises and industries of advertising, printing, photography, packaging and the like.<br> <br> Product Parameters:<br> Voltage: 110V<br> Max. laminating width: 64" (1630mm)<br> Max. laminating thickness: 1.38" (35mm)<br> Max. Laminating speed: 10m/min<br> Running method: Automatic/manual (foot pedal)<br> Temperature range: 0-60˚C<br> Roller lifting: Air cylinder<br> Roller material: Silicone<br> Preheating time: 5-10min<br> Heating mode: Infrared heating<br> Net weight: 146kg (321.84LB)<br> Product Size: 77.95"x22.83"x53.54" (198x58x136cm)<br> <br> Operation Method<br> 1. Connect the air compressor. (No air compressor is included, and customers need to use their own air compressor.)<br> 2. Connect the 110V power supply and turn the emergency switch. Both cold lamination and thermal lamination can be conducted, and the detailed operation method can refer to the following video.<br> <br> Item included(120106):<br> Techtongda Full Automatic Pneumatic Laminating Machine 64" 110V (Excluding Air Compressor)

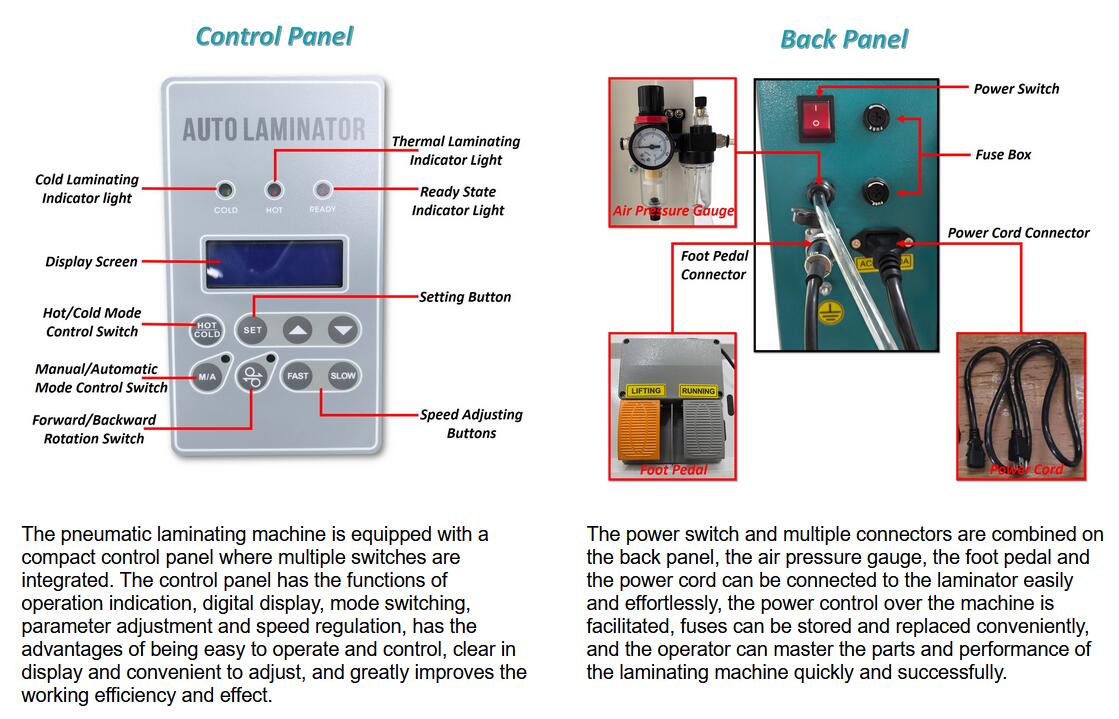

• The pneumatic laminating machine is equipped with a compact control panel where multiple switches are integrated. The control panel has the functions of operation indication, digital display, mode switching, parameter adjustment and speed regulation, has the advantages of being easy to operate and control, clear in display and convenient to adjust, and greatly improves the working efficiency and effect.
• The power switch and multiple connectors are combined on the back panel, the air pressure gauge, the foot pedal and the power cord can be connected to the laminator easily and effortlessly, the power control over the machine is facilitated, fuses can be stored and replaced conveniently, and the operator can master the parts and performance of the laminating machine quickly and successfully.

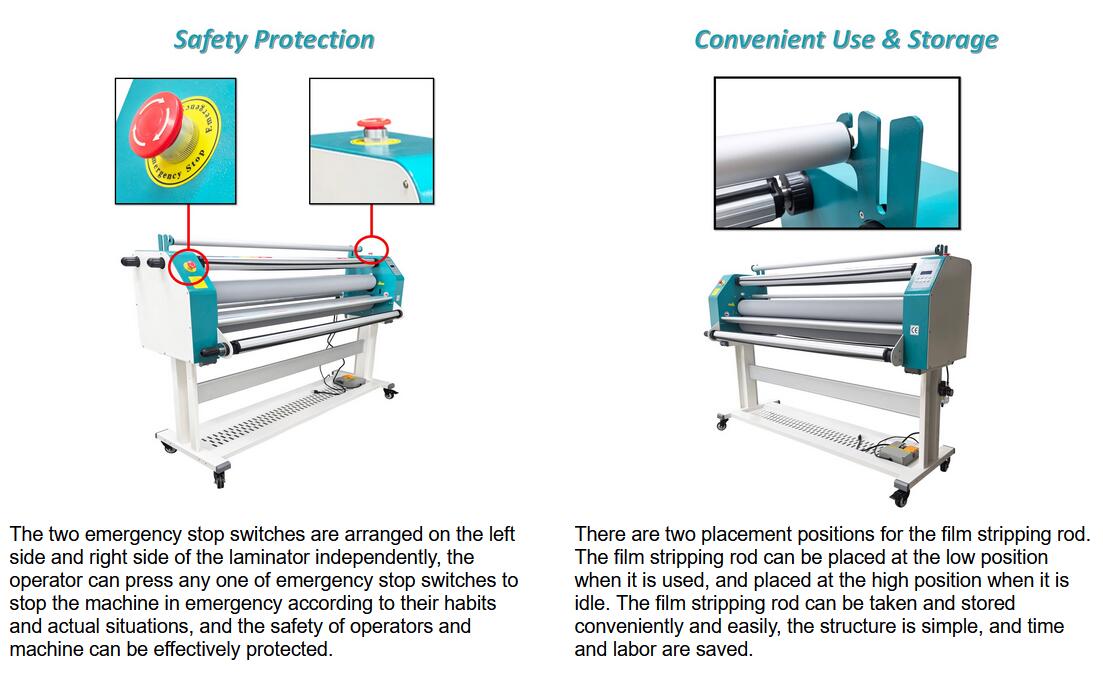

• The two emergency stop switches are arranged on the left side and right side of the laminator independently, the operator can press any one of emergency stop switches to stop the machine in emergency according to their habits and actual situations, and the safety of operators and machine can be effectively protected
• There are two placement positions for the film stripping rod. The film stripping rod can be placed at the low position when it is used, and placed at the high position when it is idle. The film stripping rod can be taken and stored conveniently and easily, the structure is simple, and time and labor are saved.

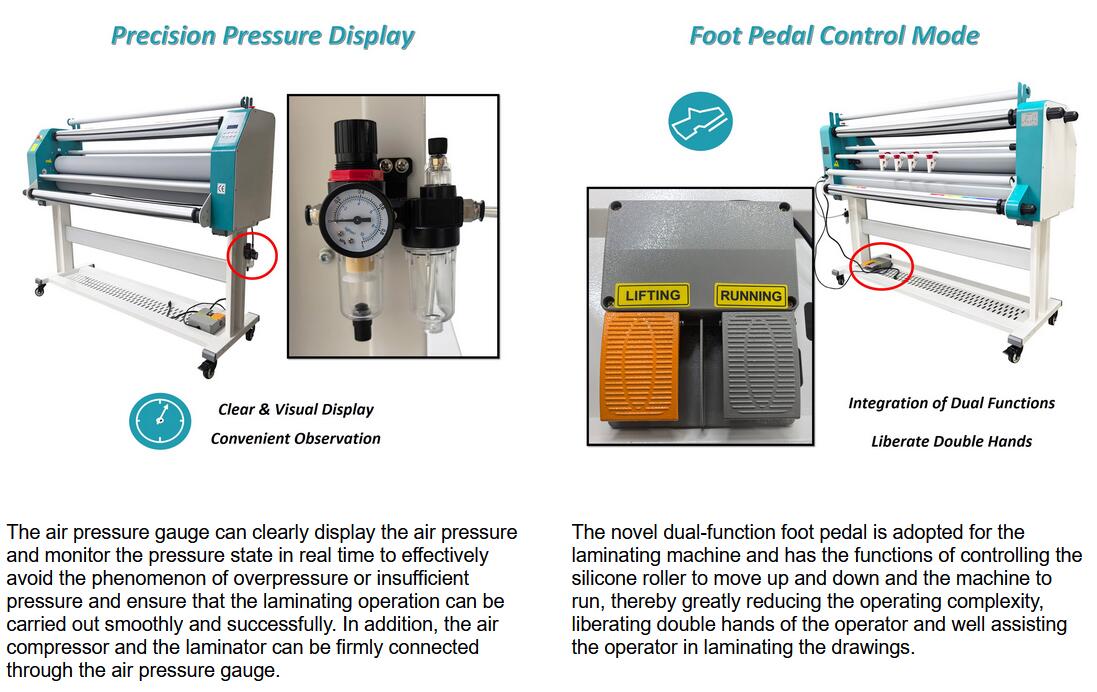

• The novel dual-function foot pedal is adopted for the laminating machine and has the functions of controlling the silicone roller to move up and down and the machine to run, thereby greatly reducing the operating complexity, liberating double hands of the operator and well assisting the operator in laminating the drawings.
